2m and 70cm satellite antennas.

    2m antenna, cross yagi

    Frequency range 144 -146 MHz
    Elements  2 x 12
    Gain        12.5 - 14.5 dBi
    VSWR     1.1 - 1.5
    Front to back ratio 20.7 - 22.5 dB
    boom length 4.11 meter

    70 cm antenna, cross yagi

    Frequency range 430-440 MHz
    Elements  2 x 20
    Gain        15 - 16 dBi
    VSWR     1.1 - 1.5
    Front to back ratio 16.5 - 18.3 dB
    boom length 3.68 meter

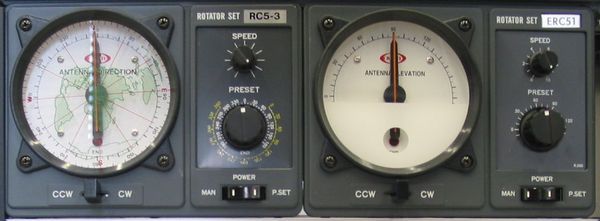

Rotor clock - AER5


   H/V rotor AER-5 manual

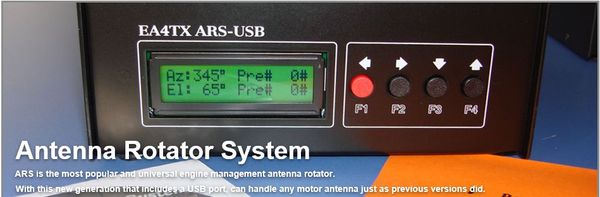

Computer interface - EA4TX


   EA4TX computer interface manual
