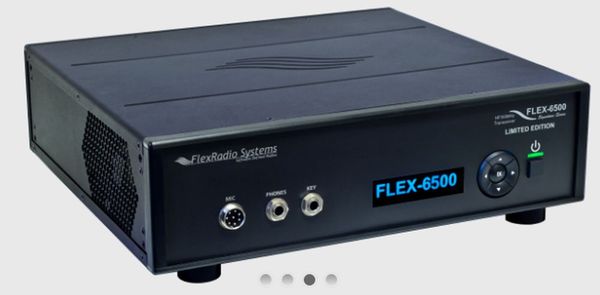

The Flex 6500 SDR Transceiver, Computer controlled

---

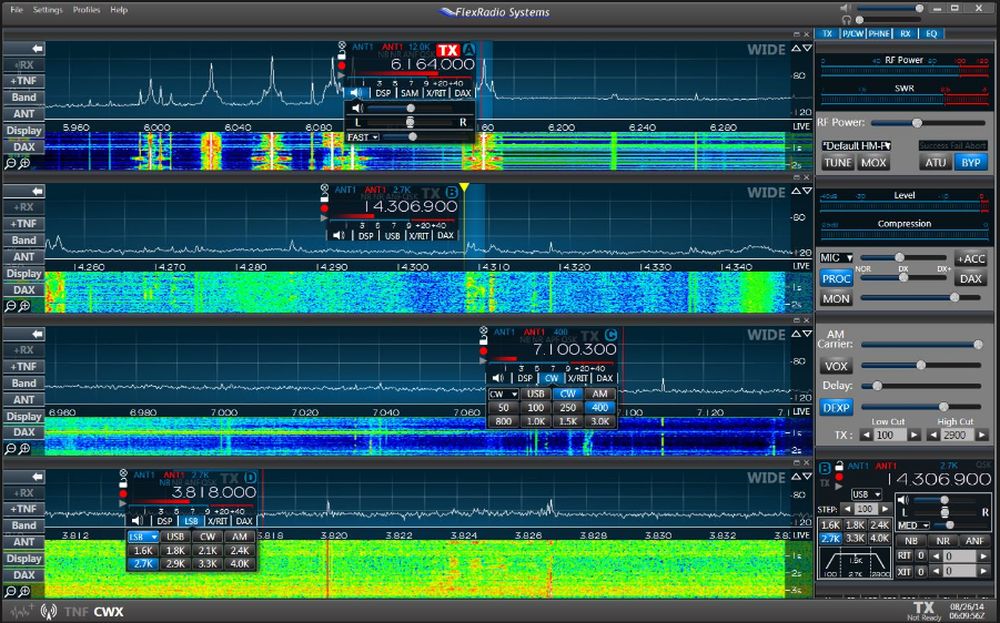

Image of the computer program to control the flex 6500

---

FLEX-6500 Hardware reference manual

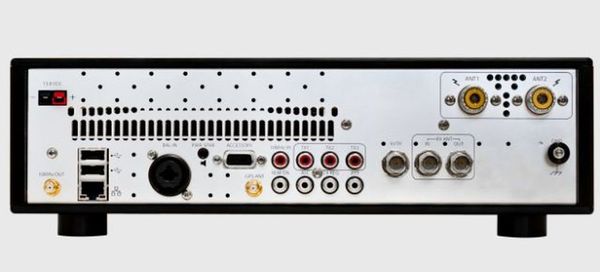

Flex radio Flex-6500 flex radio back side

---

FLEX-6500 Feature Highlights Maximum Slice Receivers: Four (4) Maximum Panadapter Bandwidth: 14 MHz Antenna Connectors: SO-239x2; BNCx1; XVTR-BNCx1 Wideband Frequency Coverage: 30 kHz - 72 MHz Transmit Frequency Coverage: 160-6m amateur bands, 100W nominal output Transverter IF Frequency Coverage*: 100 kHz - 72 MHz Digital Audio Exchange (DAX) Channels: Four (4) DAX IQ Channels/Bandwidth per Channel (DAXIQ): Four (4) @ 24 kHz - 192 kHz Preselectors: 160 - 2m (except 60m) Microphone Connectors: Unbalanced 8-pin Foster, Balanced XLR/TRS Antenna Tuner Unit (ATU): Integrated Full Continuous Coverage Transmit: MARS/CAP Capable

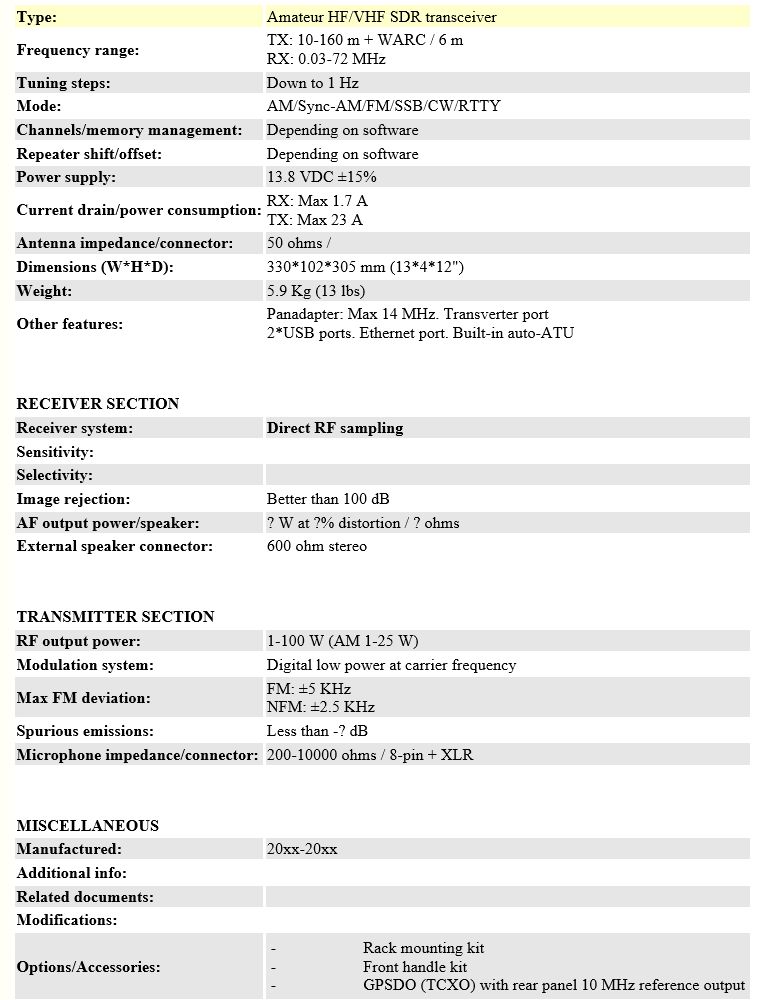

Technical data Flex-6500

---
