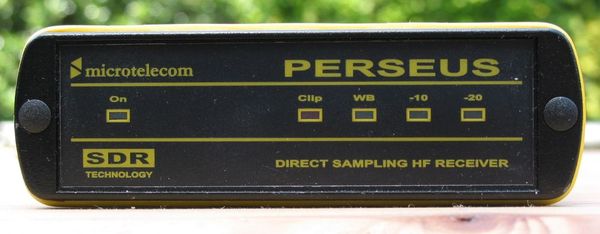

Perseus, all mode receiver 10 kHz to 40 MHz
The Perseus receiver is a direct-sampling software-defined radio (SDR) receiver offering continuous 10 kHz - 40 MHz coverage.
It features a 14 bit 80 MS/s analog/digital converter (ADC), a high-performance FPGA-based digital down-converter (DDC) and
a fast 480 Mbit/s USB2.0 PC interface which feeds a baseband up to 1.6 MHz wide on the connected PC in I/Q format.

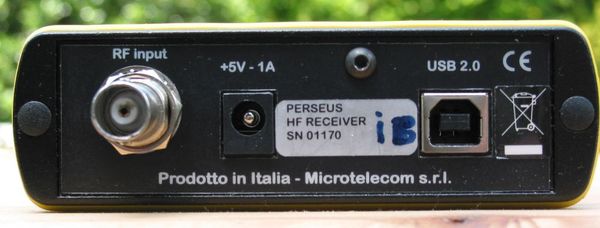

The analog front end between the BNC antenna input and the ADC consists of a switched attenuator (0 - 30 dB in 10 dB steps), a preselector with a bank of 10 switched filters (9 BPF's for 1.7 - 40 MHz and 1 LPF for 0 - 1.7 MHz) and an RF preamplifier offering high dynamic range to meet the most demanding amateur, SWL and radio-monitoring applications. The front end, and the ADC clock source, are the only analog RF circuits in the Perseus. The low-noise clock oscillator assures phase noise < -140 dBc/Hz at 10 kHz offset.
Perseus
all mode receiver user manual

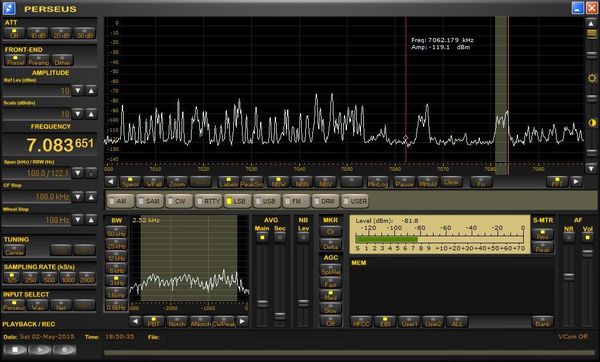

40m Band spectrum display Waterfall display showing 198 kHz reception.

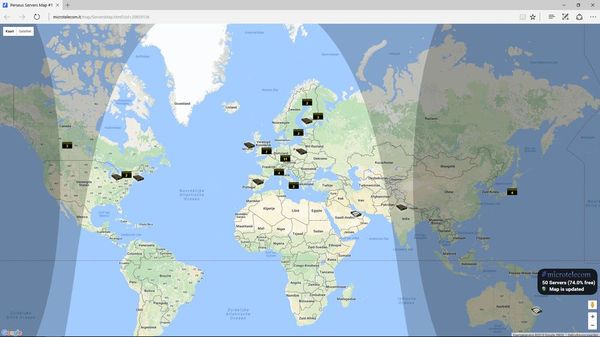

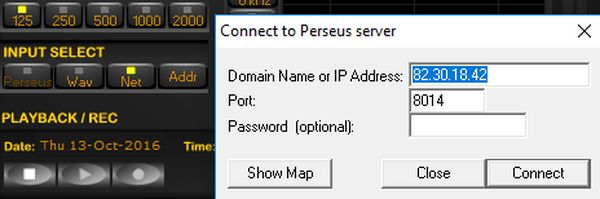

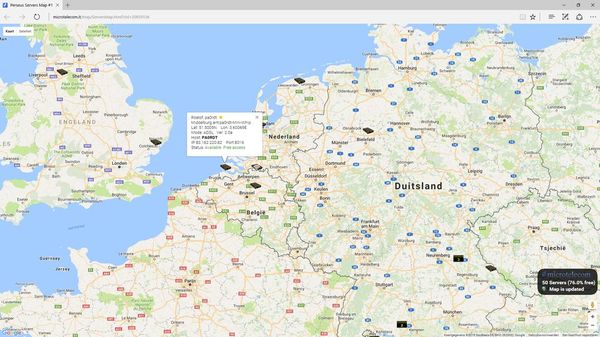

Listen to more than 50 Perseus receivers all over the world using internet.
