Receivers
RTL dongle/USB stick with Rafael Micro R820T2 chip for 24 MHz to 1766 MHz
|
Up-converter with filters to receive 0 to 2 MHz with output on 40 MHz. |
Software Defined Radio receivers RTL dongle/USB stick with Rafael Micro R820T2 chip for 24 MHz to 1766 MHz |

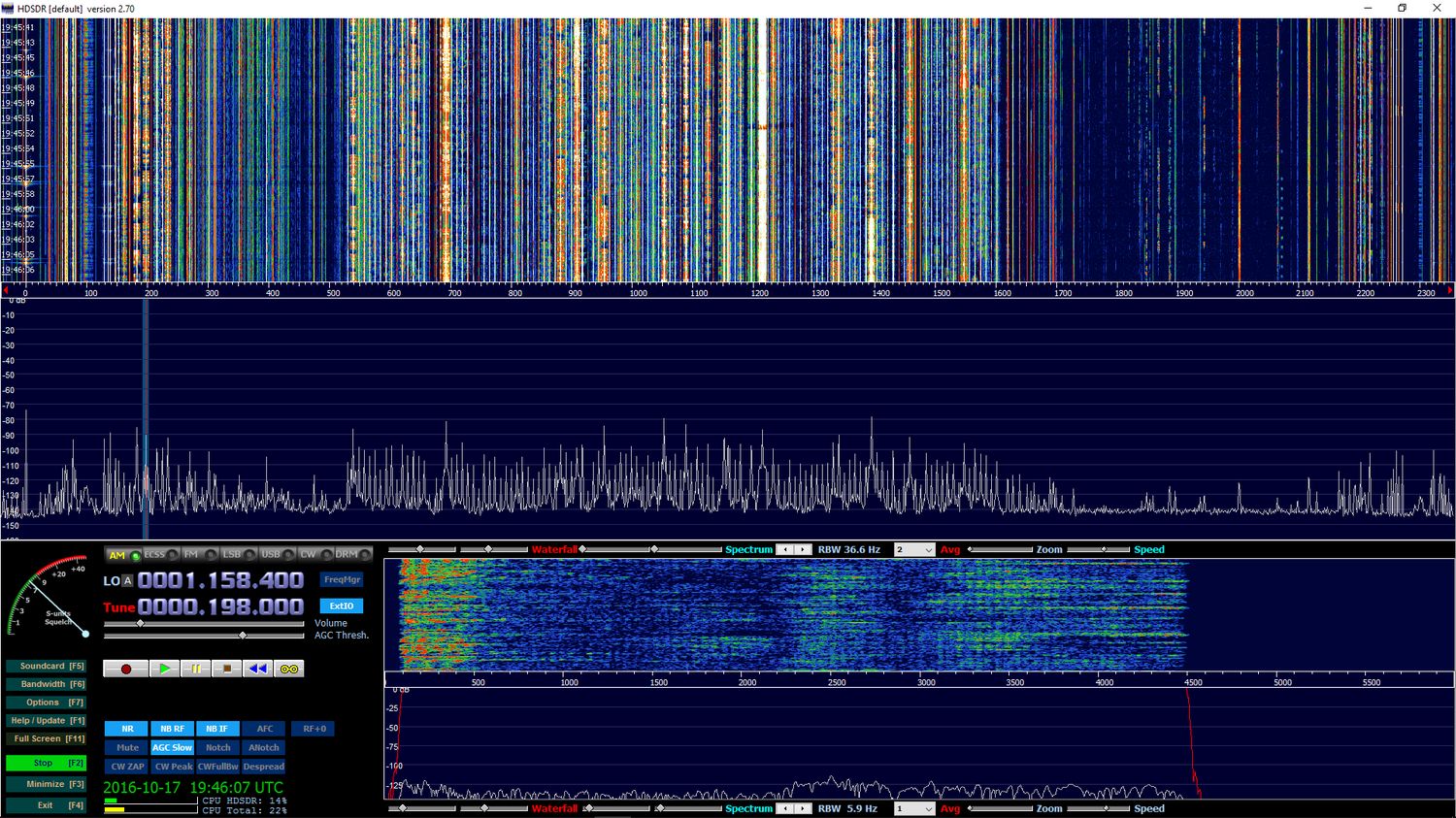

Screenshot with HDSDR software to receive 0 to 2 MHz

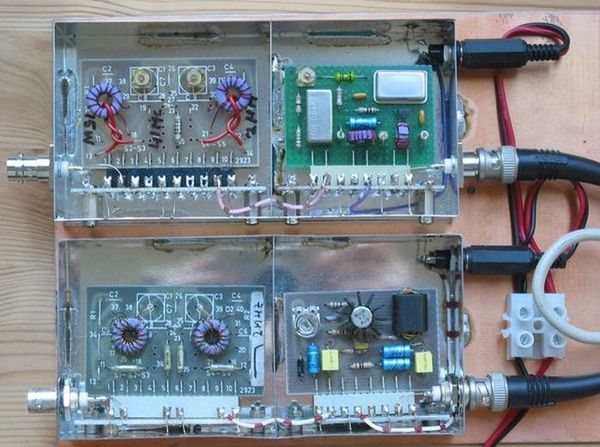

Bandpass filter 40 to 42 MHz feeding a RTLdongle/USB stick tuned for 40 to 42 MHz and connected to the USB connection of a computer to receive 0 to 2 MHz
|

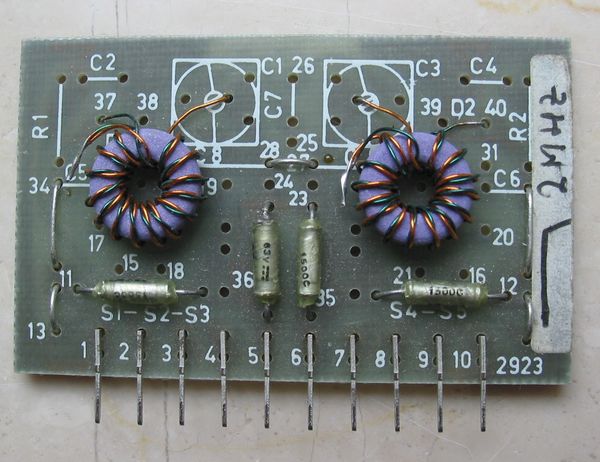

Lowpass filter 0 - 2MHz |
|
|
HF amplifier with BFW16A for 10 kHz to 70 MHz |
|
|
|
|

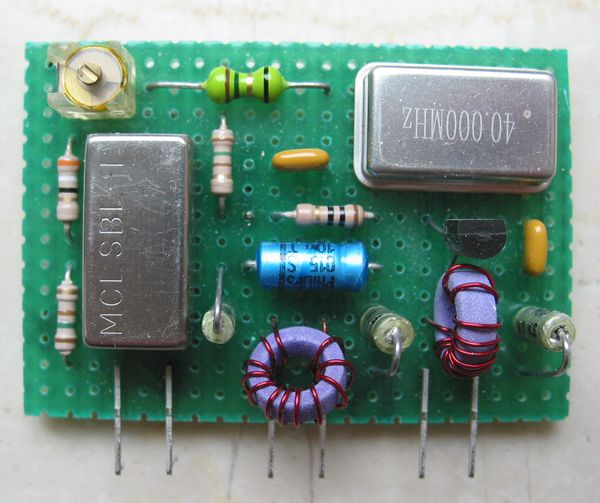

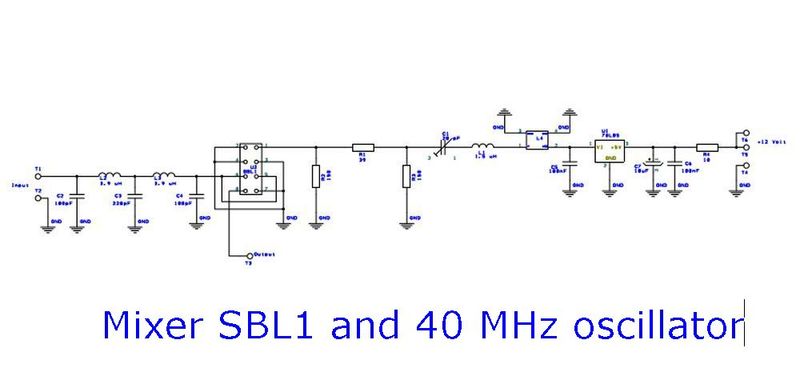

SBL1 Mixer with 40 MHz oscillator module
|

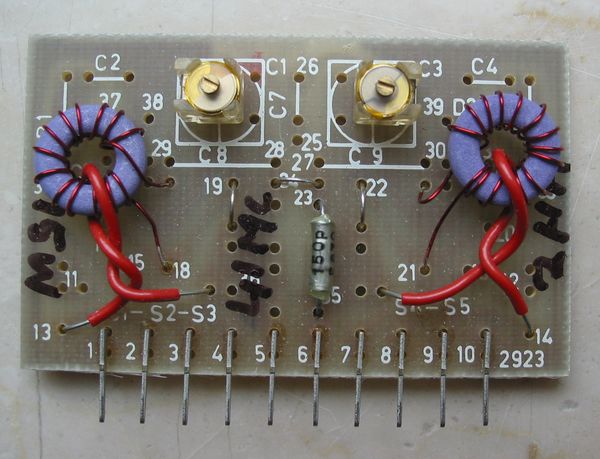

Bandpassfilter 40 to 42 MHz |
|
